8F Factory Vacheron Constantin Overseas 5500V Technical Guide
The 8F Factory Vacheron Constantin Overseas 5500V is a mechanical chronograph configuration combining a stainless-steel Overseas case, sunburst-style dial and interchangeable strap system.
One of the most important technical details of this version is its movement architecture.
The supplied specification identifies the movement as an Asia 7750-based automatic chronograph modified to present a Cal.5100-style configuration.
This distinction is worth documenting clearly. It means the movement should not be classified as a true integrated Cal.5100 clone simply because its visible appearance has been adapted toward that layout.
For a technical database, the underlying 7750 architecture is an important part of identifying this particular 8F version.
Stainless-Steel Overseas Case
The 5500V follows the recognizable Overseas case architecture with a stainless-steel construction and Maltese-cross-inspired design elements.
The case combines curved surfaces with brushed and polished finishing.
Rather than judging the exterior only from a straight front photograph, angled lighting is particularly useful for documenting the transition between different finishes.
Useful inspection areas include:
- Bezel
- Bezel edges
- Case sides
- Lugs
- Chronograph pushers
- Crown
- Caseback
- Strap attachment points

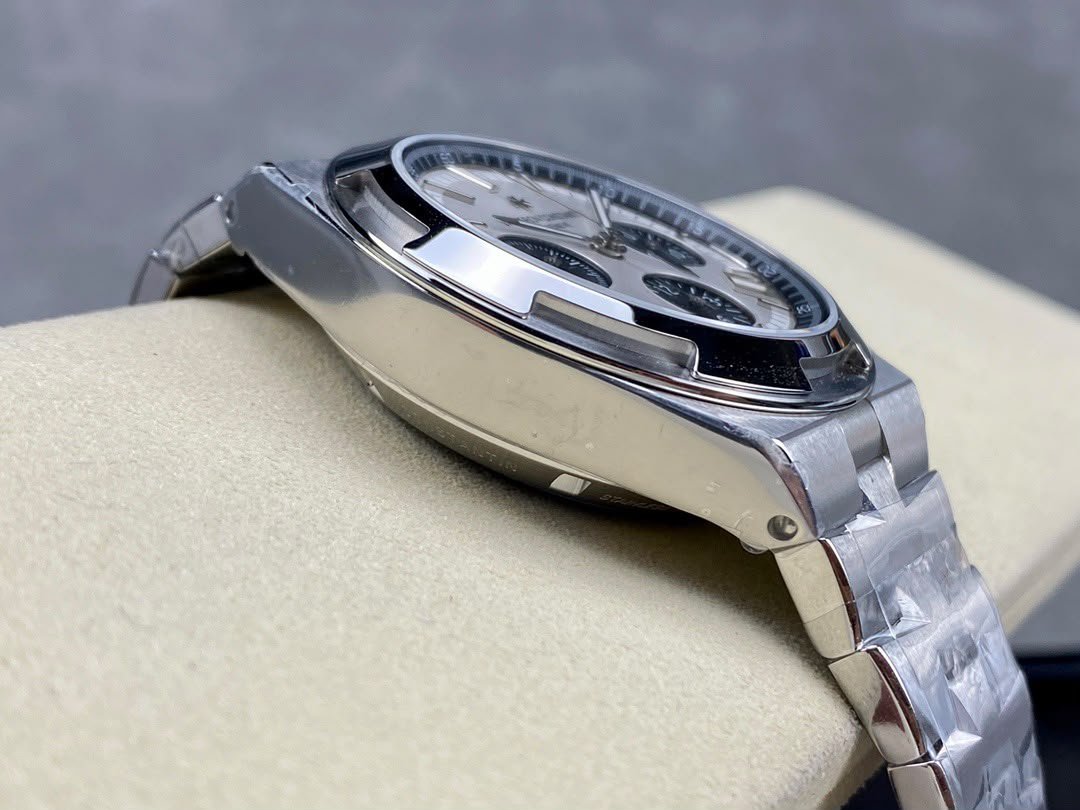

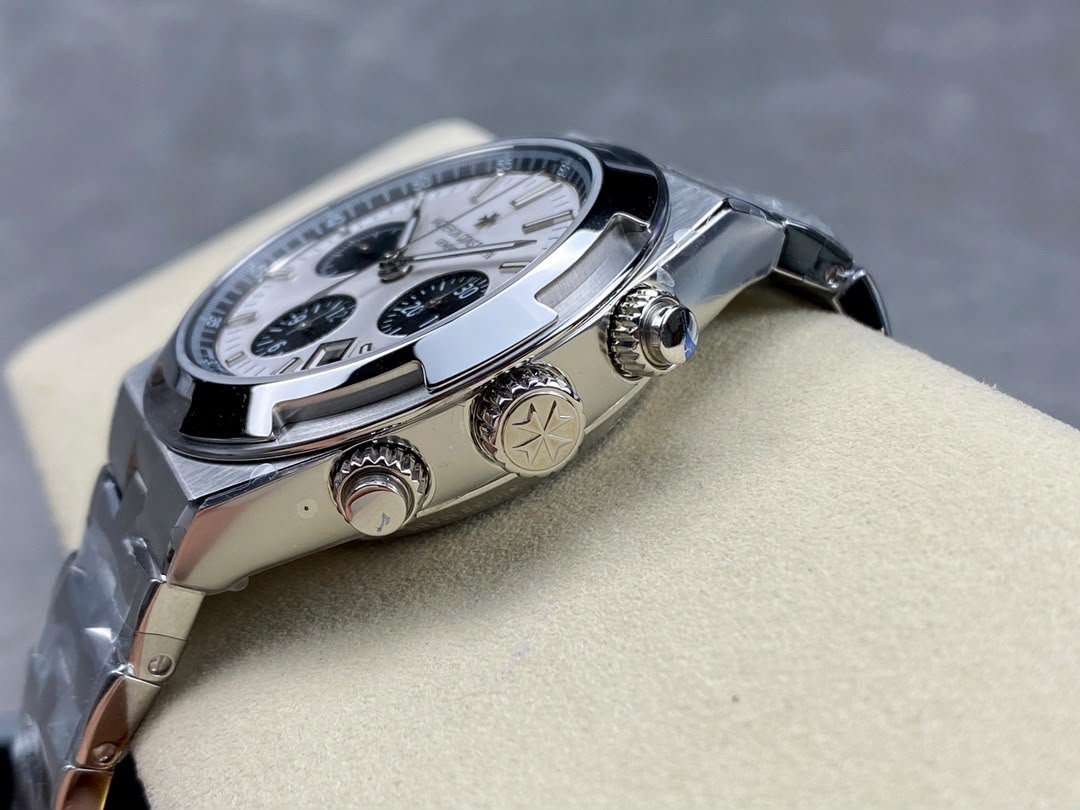

On a chronograph, the relationship between the pushers, crown and case is also useful to inspect from the side.
Brushed and Polished Surface Finishing
The supplied information specifically highlights the combination of polished and satin/brushed surfaces.
These contrasting finishes contribute considerably to the appearance of the Overseas case.
A polished surface reflects light directly, while brushed surfaces produce a softer directional reflection.
Close-up photography under neutral lighting can show whether these transitions remain clearly defined around the case and bezel.
This is more informative than using general claims about exterior quality.
Sunburst-Style Dial

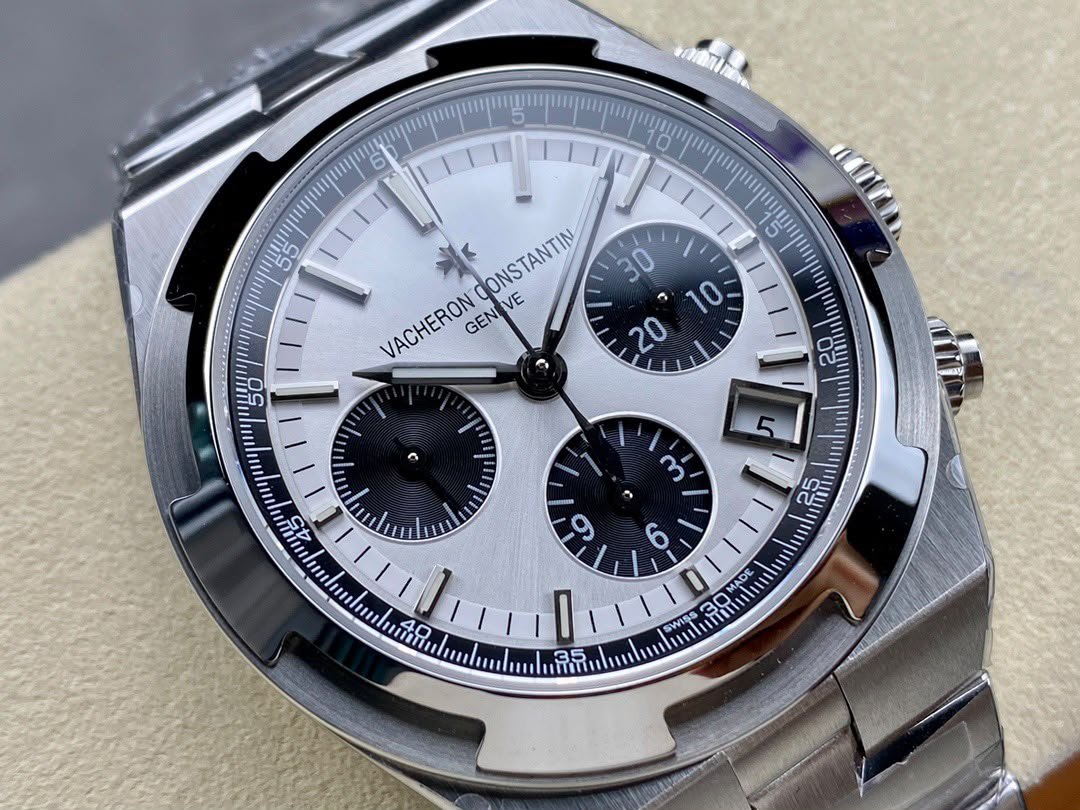

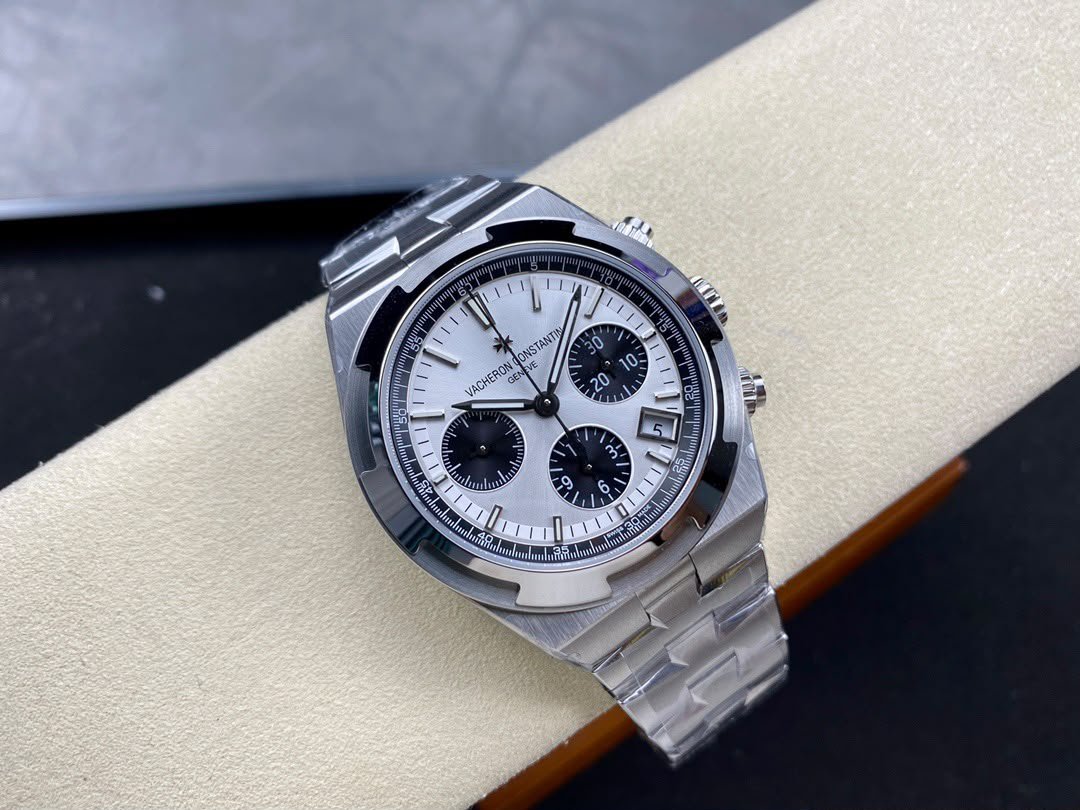

The 8F 5500V uses a sunburst-style dial.
Sunburst finishing creates different shades as the dial is rotated relative to the light source.
Under strong directional lighting, part of the dial may appear considerably brighter while the opposite side becomes darker.
For this reason, dial color is better documented using several lighting angles rather than relying on a single photograph.

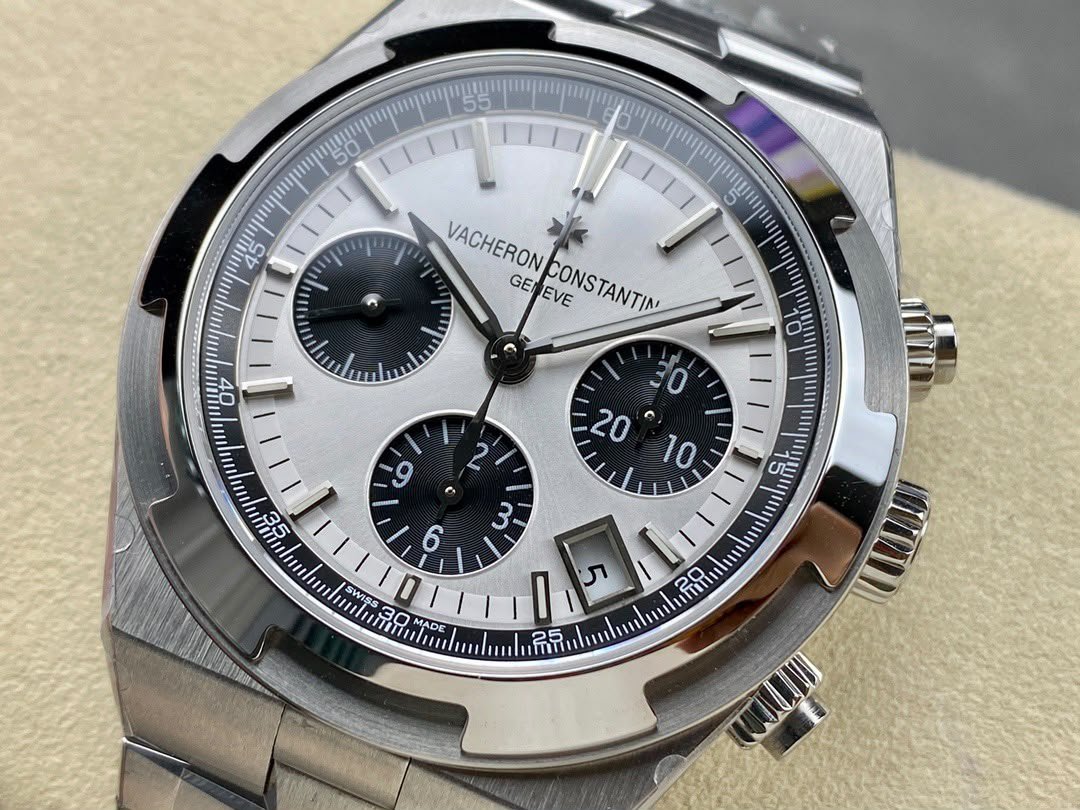

Dial Details
Because this is a chronograph, there are more alignment points than on a conventional three-hand Overseas.
Useful areas include:
- Main hour markers
- Hour and minute hands
- Central chronograph seconds hand
- Chronograph subdials
- Subdial hands
- Date display
- Minute track
- Dial printing
A straight front photograph is particularly useful for checking overall alignment.
Luminous Hands and Markers
The supplied configuration includes luminous elements on the hands and dial.
A lume test can be performed by charging the watch under a consistent light source and then photographing it in darkness.
This allows the color, initial brightness and distribution of the luminous material to be documented.
As with other QC measurements, an actual photograph from the individual watch provides more useful information than an absolute claim about luminous performance.
Quick-Release Strap System
One of the main upgrades highlighted for this 8F version is its quick-release interchangeable strap system.
The supplied configuration includes compatible rubber and leather strap options.
The system is designed to allow the strap to be removed and replaced without using a conventional spring-bar tool.
For QC purposes, simply pressing the release mechanism is not enough.
A complete functional test should include:
Release → Remove → Reinstall → Lock → Security Check
After installation, each side should be gently checked to confirm that the locking mechanism has fully engaged.
Rubber and Leather Strap Options
The availability of both rubber and leather gives the same 5500V case two noticeably different configurations.
The rubber strap creates a more sport-oriented appearance and is generally easier to use around moisture.
The leather strap changes the visual character toward a more traditional configuration.
Neither option changes the underlying movement architecture.
For database organization, these are therefore better recorded as strap variants of the same 8F 5500V platform, rather than separate technical models.

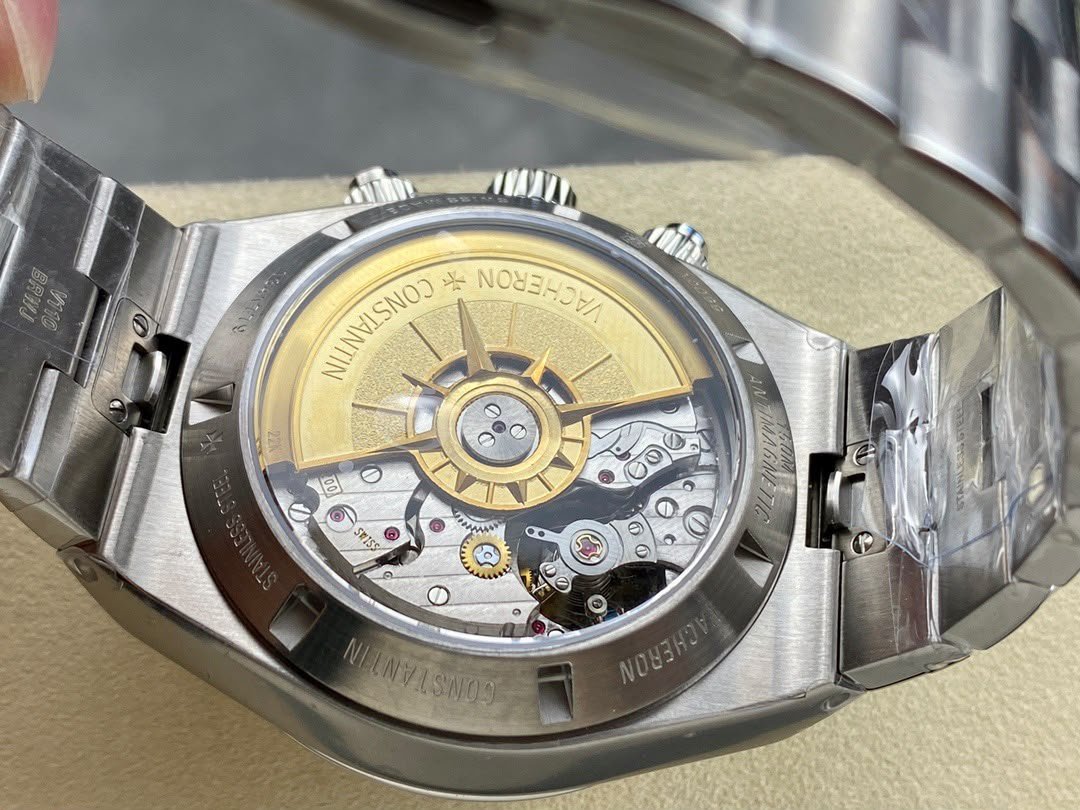

Asia 7750-Based Cal.5100-Style Movement
The most important technical point of this 8F 5500V is the movement.
The supplied configuration uses an:
Asia 7750 Automatic Chronograph → Modified Cal.5100-Style Configuration
This should not be confused with a movement developed from the original Cal.5100 mechanical architecture.
The Asia 7750 is an established automatic chronograph platform. Modifying its exterior and associated components can change the visible layout, but the underlying architecture remains based on the 7750 platform.
This distinction is particularly useful when comparing different factory versions of the 5500V.
Why “7750 Modified to 5100” Matters
Two 5500V watches can look similar externally while using fundamentally different movement solutions.
For example, one version might use a modified 7750 platform, while another may use a differently constructed integrated-style movement.
Those differences can affect:
Movement Layout → Thickness → Serviceability → Chronograph Architecture → Visible Caseback Appearance
For this reason, simply labeling both movements “5100” would remove useful technical information from the database.
The 8F version is better classified as:
7750-Based / Cal.5100-Style Automatic Chronograph
Functional Chronograph
Because the base architecture is a mechanical chronograph, functional testing is particularly important.
The chronograph should be tested through the complete sequence:
Start → Run → Stop → Reset
The central chronograph seconds hand should start normally and continue running consistently.
The corresponding counters should also be observed over a sufficiently long period to confirm that they advance correctly.
After stopping the chronograph, the reset function should return the hands to their appropriate zero positions.
Running the test several times provides more useful information than a single short activation.
Chronograph Pusher Operation
The two chronograph pushers should also be evaluated separately.
Start, stop and reset should engage consistently without unusually heavy, weak or irregular resistance.
Because chronograph mechanisms contain substantially more interacting components than simple three-hand movements, pusher feel and complete functional testing are particularly useful during QC.
Movement Testing
The Asia 7750-based movement can also be tested on a timegrapher.
Useful measurements include:
Daily Rate → Amplitude → Beat Error → Beat Rate
These figures provide a snapshot of the movement’s running condition at the time of testing.
They should be considered together with the chronograph test rather than used as the only indication of movement condition.
Movement Appearance vs. Architecture
This is also a useful example of why visible movement appearance and underlying movement architecture should be documented separately.
A modified movement may reproduce some of the visual characteristics associated with another caliber while retaining a different mechanical foundation.
For your database, this 8F 5500V should therefore remain clearly tagged:
Base Movement: Asia 7750
Visual/Modified Configuration: Cal.5100-Style
That makes future comparisons with other 5500V versions considerably more useful.
Super Clone Watch and Movement Identification
The term super clone watch is commonly used as a broad market description, but it does not identify the underlying movement architecture.
For a complicated model such as the 5500V chronograph, knowing whether a version uses a 7750-based movement or another integrated-style architecture provides much more useful technical information.
Actual QC data can then add daily rate, amplitude, beat error, beat rate, dimensions, weight and complete chronograph operation.
For an individual example, see our 8F Factory Vacheron Constantin Overseas 5500V QC test.
Details Worth Checking
For an individual 8F 5500V, actual case diameter, thickness and complete weight should be recorded first.
The dial can then be checked for main-hand, subdial-hand and chronograph-seconds alignment.
The chronograph should undergo several complete start, stop and reset cycles, preferably including a longer running test to confirm the operation of the accumulated timing displays.
Movement measurements should include daily rate, amplitude, beat error and beat rate.
Finally, both the rubber and leather strap configurations can be installed and removed to test the quick-release mechanism and locking security.
Technical Specifications
Specification Details
Factory 8F Factory
Collection Vacheron Constantin Overseas
Reference 5500V Series
Case Material Stainless Steel
Case Finishing Brushed / Polished
Dial Sunburst-Style
Movement Base Asia 7750
Movement Configuration Cal.5100-Style
Winding Automatic
Chronograph Functional
Strap System Quick Release
Strap Options Rubber / Leather
Case Diameter Recommended to Confirm
Thickness Recommended to Measure
Weight Recommended to Measure
FAQ
- What movement does the 8F Factory Overseas 5500V use?
The supplied specification identifies an Asia 7750-based automatic chronograph movement modified into a Cal.5100-style configuration.
- Is this a true Cal.5100 integrated clone movement?
It should not be classified that way based on the supplied information. The underlying movement is identified as an Asia 7750, so the more accurate description is a 7750-based Cal.5100-style movement.
- Does the chronograph function?
The supplied configuration uses a functional automatic chronograph. An individual watch should still undergo complete start, run, stop and reset testing.
- Can the straps be changed without conventional tools?
The supplied version uses a quick-release strap system designed for compatible rubber and leather straps. Locking security should be checked after every installation.
- Why is the movement base important?
The underlying movement architecture can affect the internal construction, movement thickness, chronograph mechanism and future servicing. It also makes it easier to distinguish between different factory versions of the same 5500V.
- What should be checked during QC?
Useful checks include actual dimensions, weight, daily rate, amplitude, beat error, beat rate, complete chronograph operation, subdial alignment, dial finishing, crown and pusher operation, strap removal/reinstallation and quick-release locking security.
